Model #:
KOES530SPS
Color:
PrintShield Stainless

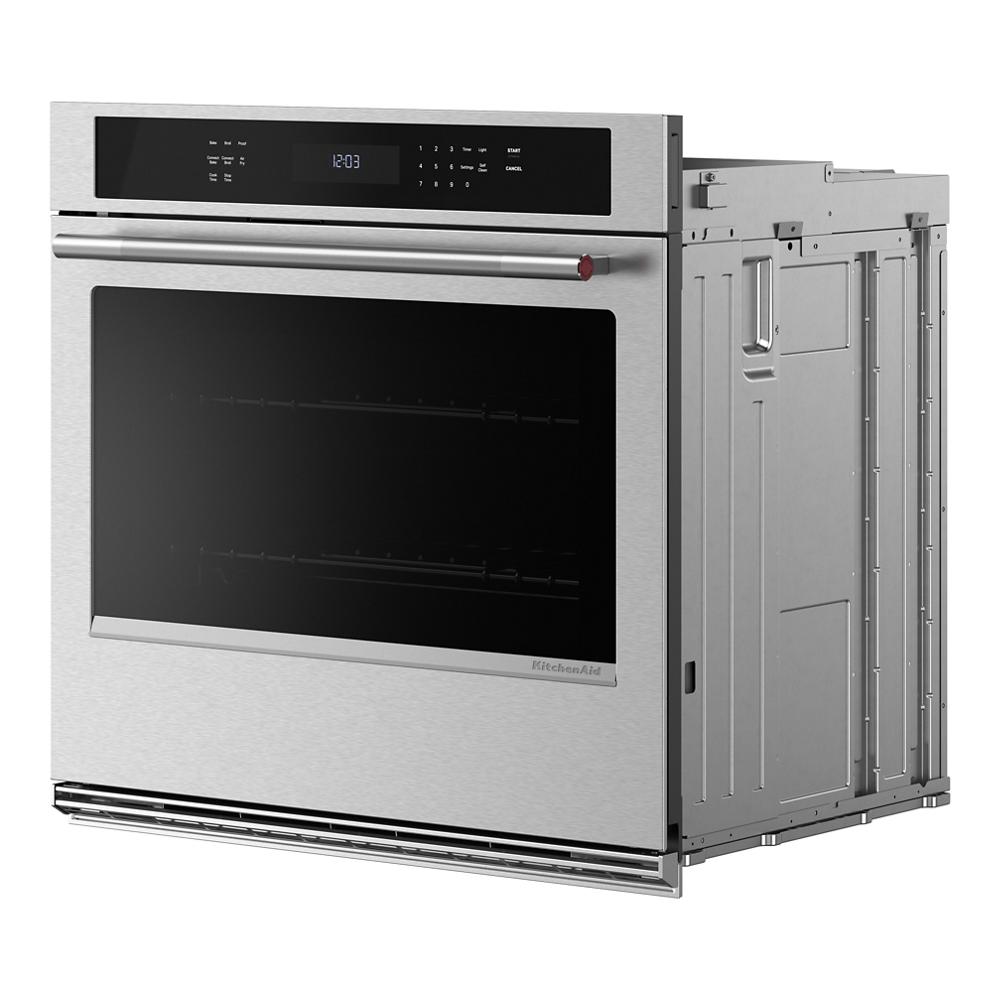

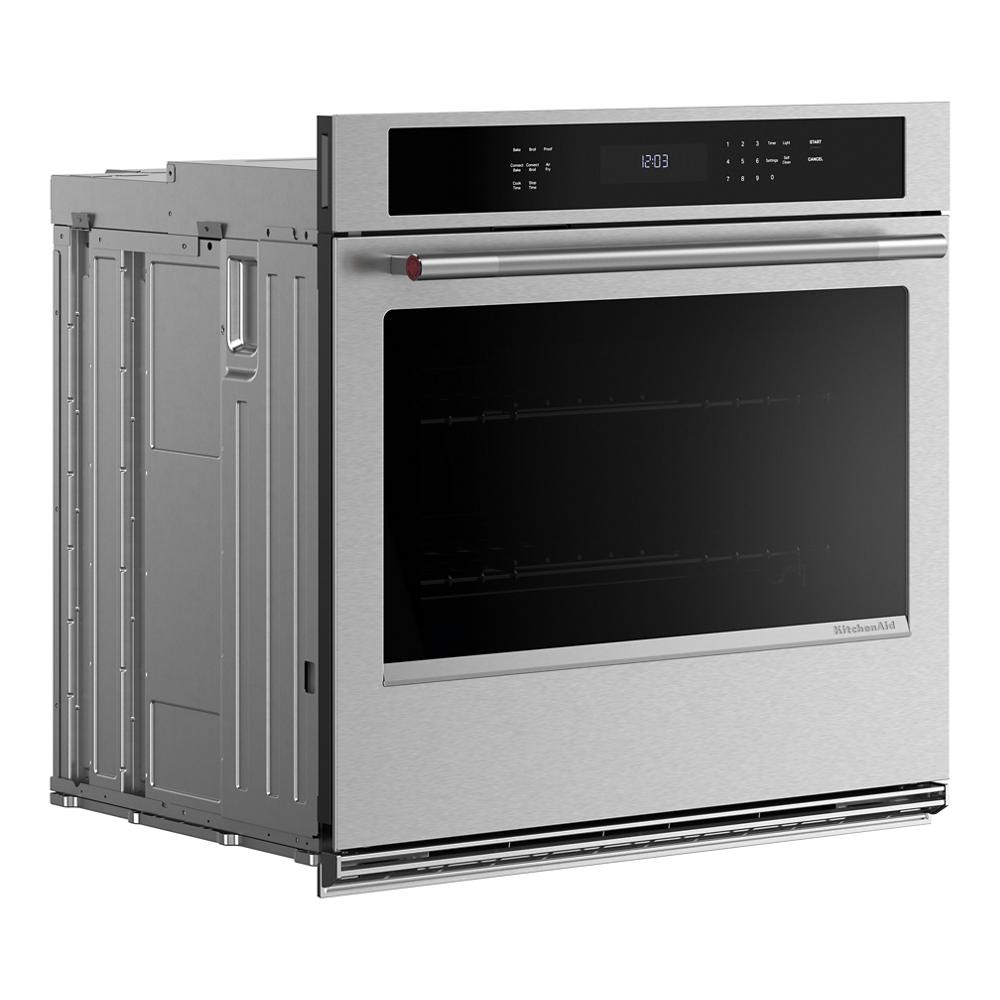

Single Wall Oven with Air Fry Mode
Single Wall Oven with Air Fry Mode
Price
We might not be able to fulfill your order for the quantity requested

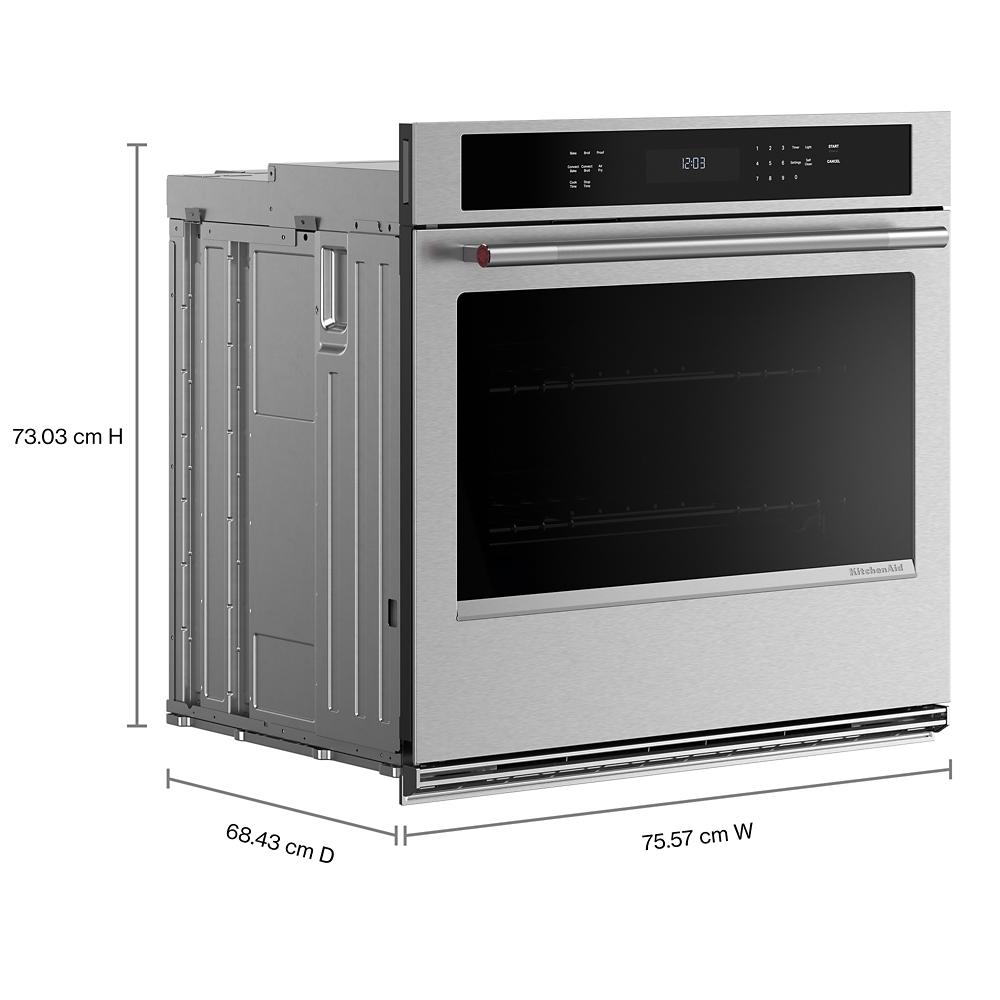

Dimensions
Width: 29.75
Height: 28.75
Depth: 26.9375
Color
PrintShield Stainless
Features
Even-Heat™ True Convection
- Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
- provides internal temperature updates on oven screen or your mobile device* so you can keep the precise heat needed for juicy pork loin roasts, halibut, lamb and more, without opening the door. Plus works in tandem with our Assisted Cooking Modes for seamless precision.
- features a roll-out extension rack and ball-bearing rollers with an easy-grip handle for effortless loading and unloading of large or heavy dishes.
- uses heating elements and a fan to circulate hot air within the cavity, crisping and browning food with less oil.*†
- Resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
- Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
- Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.*
- Provides an extra-large cooking capacity in both ovens that’s perfect for large turkeys and roasts. It can even fit multiple dishes at once.
- Provides an extra-large cooking capacity in both ovens that’s perfect for large turkeys and roasts. It can even fit multiple dishes at once.
- Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe-down at the end of the cycle so you can get right back to cooking.
- uses the power of steam and added water to help release spills so they can be easily wiped away.
Product Description
Get the crisp you crave, right from your oven. KitchenAid® Single Wall Ovens with Air Fry Mode circulate hot air around the included basket to cook with less oil.* An integrated thermometer takes the guesswork out of roasting meat just the way you like.
*When compared to deep frying.
Rebates
2508058KA - KITCHENAID BONUS REBATES Neco Alliance Prepaid Mastercard®
KITCHENAID BONUS REBATES Neco Alliance Prepaid Mastercard®
Start Date: 08/20/2025
End Date: 09/15/2025
Specification
| Certifications | |
| ADA Compliant | Yes |
| CUL | Yes |
| Energy Rating (Kwh/Year) | 356 |
| Star K Certified | Star K Certified |
| UL | Yes |
| Prop65 | Standard |

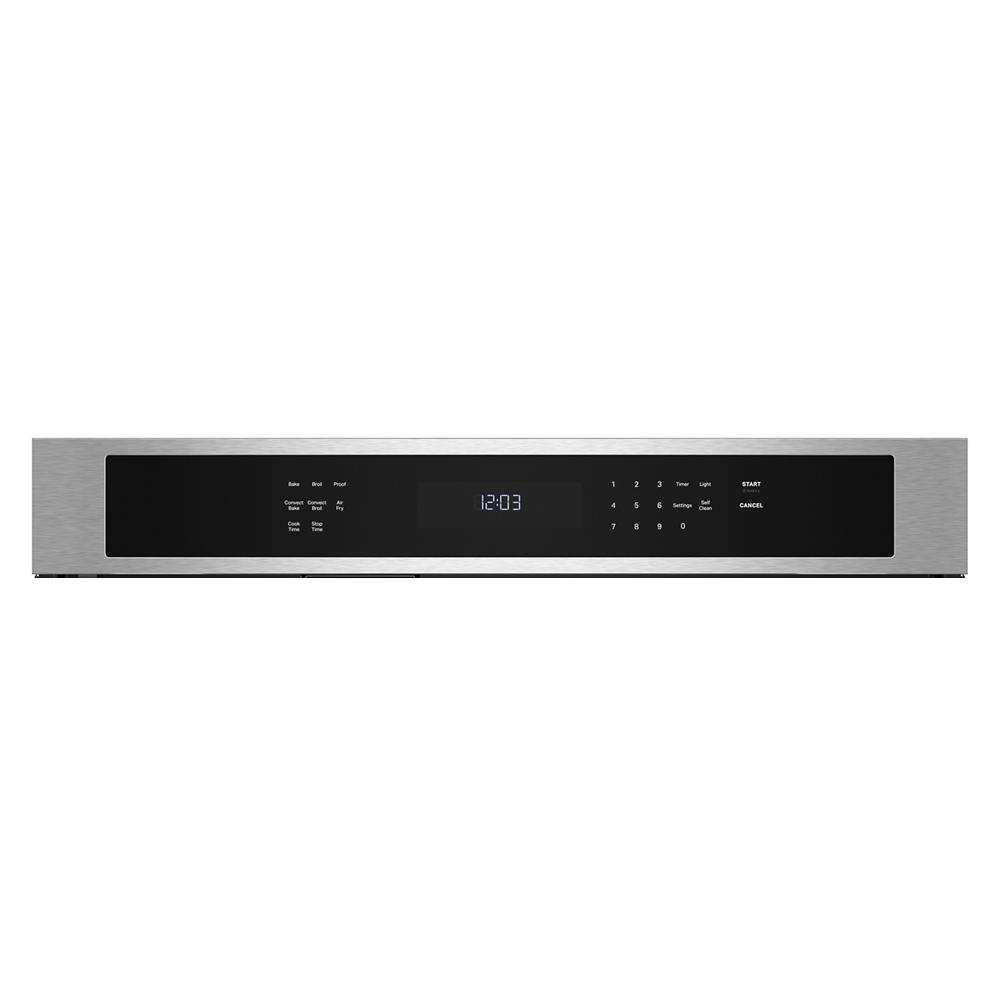

| Controls | |
| Control Type | Electronic Touch |
| Display Color | White |
| Electronic Display Type | Digital |
| Details | |
| Air Fry | Yes |
| Cooktop Combinations | KCES550; KCES556; KCES950; KCES956; KCGS350; KCGS356; KCGS550; KCGS556; KCGS950; KCGS956; KECC056; KECC602; KECC604; KECC607; KECC664; KECC667; KGCC506; KGCC566; KICU509; KICU569 |
| Delay Clean | No |
| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| LP Convertible | No |
| Light Control | Oven Light Touch Pad |
| Oven Type | Single |
| Power On Indicator Light | Yes |
| Dimensions | |
| Cutout Depth | 24 |
| Cutout Height | 28 |
| Cutout Width | 28.5 |
| Depth Closed Excluding Handles | 24.5 |
| Depth Closed Including Handles | 26.938 |
| Depth Excluding Doors | 23.25 |
| Depth With Door Open 90 Degree | 46.188 |
| Oven Interior Depth | 19 |
| Oven Interior Height | 18 |
| Oven Interior Width | 25 |
| Carton Depth | 31 inches |
| Carton Height | 31.81 inches |
| Carton Width | 35 inches |
| Gross Weight | 172.4 pounds |
| Net Weight | 167.4 pounds |
| Electrical | |
| Power Cord Included | No |
| Exterior Details | |
| Door Type | Metal & Glass |
| Oven Window Size | Extra Large |
| Microwave Details | |
| Language Conversion | English/French/Spanish |
| Oven Details | |
| Bake Element Power | 2800W |
| Broiler Element Power | 4000W |
| Broiler Location | Top of Oven |
| Convection Element Power | 3200 |
| Convection Element Type | True Convection |
| Convection Functions | Bake, Broil, Air Fry; Convection Conversion |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | Yes |
| Installable Under Oven | Yes |
| Interior Coating | Porcelain |
| Light Type | Halogen |
| Number Of Bake Elements | 2 |
| Number Of Broil Elements | 1 |
| Number Of Oven Lights | 2 |
| Number Of Oven Racks | 2 |
| Number Of Rack Guides | 6 |
| Oven Cleaning Type | Self-Cleaning |
| Self-Cleaning Oven Racks | No |
| Temperature Probe | Yes |
From the Manufacturer
Warranty
Extended warranties can save you hundreds, sometimes even thousands of dollars in unexpected repairs. You can contact us, or visit our store for additional details.
Delivery
Let our team co-ordinate professional delivery and installation on your new purchase. Some restrictions may apply.
Disclosures
Proposition 65 Warning for California ResidentsCancer and Reproductive Harm - P65Warnings.ca.gov
Get the crisp you crave, right from your oven. KitchenAid® Single Wall Ovens with Air Fry Mode circulate hot air around the included basket to cook with less oil.* An integrated thermometer takes the guesswork out of roasting meat just the way you like.
*When compared to deep frying.
*When compared to deep frying.
Features
Even-Heat™ True Convection
- Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
- provides internal temperature updates on oven screen or your mobile device* so you can keep the precise heat needed for juicy pork loin roasts, halibut, lamb and more, without opening the door. Plus works in tandem with our Assisted Cooking Modes for seamless precision.
- features a roll-out extension rack and ball-bearing rollers with an easy-grip handle for effortless loading and unloading of large or heavy dishes.
- uses heating elements and a fan to circulate hot air within the cavity, crisping and browning food with less oil.*†
- Resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
- Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
- Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.*
- Provides an extra-large cooking capacity in both ovens that’s perfect for large turkeys and roasts. It can even fit multiple dishes at once.
- Provides an extra-large cooking capacity in both ovens that’s perfect for large turkeys and roasts. It can even fit multiple dishes at once.
- Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe-down at the end of the cycle so you can get right back to cooking.
- uses the power of steam and added water to help release spills so they can be easily wiped away.
